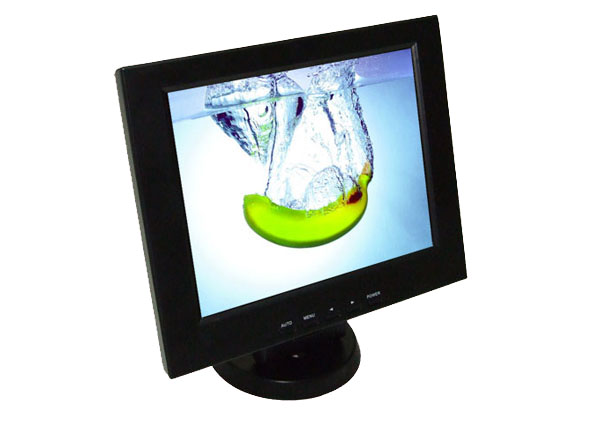

QZ-LM121S
| Viewing Size | Inch | 12.1" |
|
|
Active Matrix TFT-LCD | |
| Viewing Angle | Degree | Horizontal: 160° Vertical: 140° |
Contrast Ratio |
700:1:1 | |
| Luminance | Cd/m2 | 450 |
| Response time | ms | 16 |
| Resolution (Max) | 1024 x 768 @75Hz | |
Display Color |
Colors |
16 Million |
H.Scan Freq. |
KHz |
31 - 60 |
| V.Scan Freq. | Hz | 60 - 75 |
Back Light |
LED | |
| Service life (Light) | Hr. | 30,000 |
Plug & Play |
VESA DDC1, DDC2B | |
| User Control | Full OSD Menu Control | |
| Power Saving | VESA DPMS Standard | |
| Power Supply | V | AC 100 -- 240V, 50 -- 60 Hz DC 12V / 4A |
| Power Consumption | W | 16 |
| Working Conditions | Temperature: -30℃ -- 70℃ Humidity: Up to 80% | |
| Storaging Conditions | Temperature: -40℃ -- 80℃ Humidity: Up to 90% | |
| Dimension | mm | 318 x 40 x 290 |
| Packing Dimension | mm | 330 x 320 x 50 |
| Weight | Kg | 2.2 |
