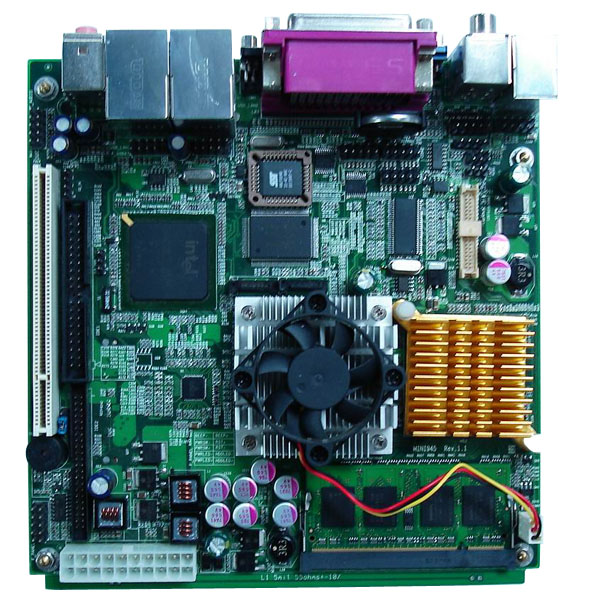

The QZ-945II is the Mini-ITX board (170 x 170 mm) which to feature the all-in-one Intel GMA950 digital media IGP chipset, providing enhanced media playback and visual clarity across multiple displays in digital multimedia applications.

Key features include HDMI configurations with unique resolutions, pixel depths and refresh rates as well as two PCI-Express based Gigabit LAN ports to facilitate wideband data transfer for large video and other files over networks.

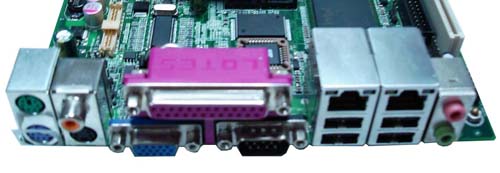

The QZ-945II supports up to 2GB of the latest DDR2 system memory. Storage includes both an IDE port, 2 SATA II ports and up to 8 USB 2.0 ports, four through onboard connectors. Connectivity comes in the form of dual Gigabit LAN ports on the high speed PCI-Express bus.

Intel^® 945G Express Chipset
The Intel^® 945G Express Chipset with Intel Graphics Media Accelerator 950 graphics core delivers outstanding system performance through high-bandwidth interfaces such as DDR2 memory, 533/667 MHz system bus, Serial ATA 2.0 3Gb/s and Hi-Speed USB 2.0 connectivity. The Intel 945G Express Chipset also includes support for Intel^® Active Management Technology, the next generation of remote client network management.

Intel^® Graphic Media Accelerator 950
The Intel^® Graphics Media Accelerator 950 combines faster graphics processing and increased memory bandwidth to deliver richer visual quality and colors without the need for additional discrete graphics cards.

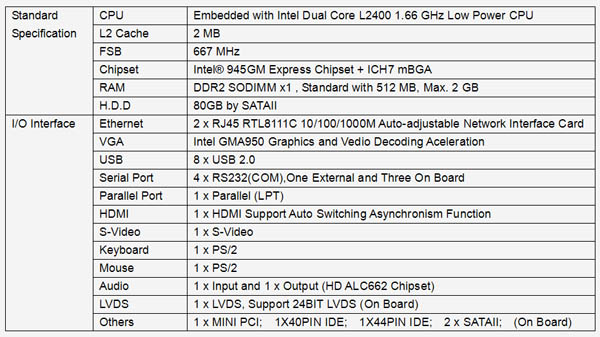

Key Features:

Integrated Intel GMA950 Graphics Chipset

Supports one IDE and two SATAII

Supports dual Gigabit Ethernet

Supports one HDMI port

Supports eight USB 2.0 ports

Supports HD audio

Designed for Digital Signage and Kiosk applications

Operating Temperature:  0°C~60°C (32°F~140°F)
Storage Temperature:  -20°C~80°C (-68°F~176°F)
Relative Humidity:  10%~90% (non-condensing)

This motherboard is allowed to install in POS800, QZ-151AT, QZ-151AD and QZ-M2500.



---
