QZ-Q2
The Smart Mobile POS with 3G network
NFC & M1 as options
HOST UNIT
Mainboard
POS Industrial
compact Mainboard
CPU
4
Core MTK80 1.3GHz Processor
Memory
1GB
DDRIII
Storage
4GB
Nand Flash
Network
3G
, GSM900/1800, WCDMA 900/2100
Blue-Tooth 4.0
WIFI
IEEE
802.11 b.g.n
OTG
OTG
x 1
Speaker
Single
Channel 1W, South Volumn up to 95 Decibel
Camera
500W
Fixed Focus Camera

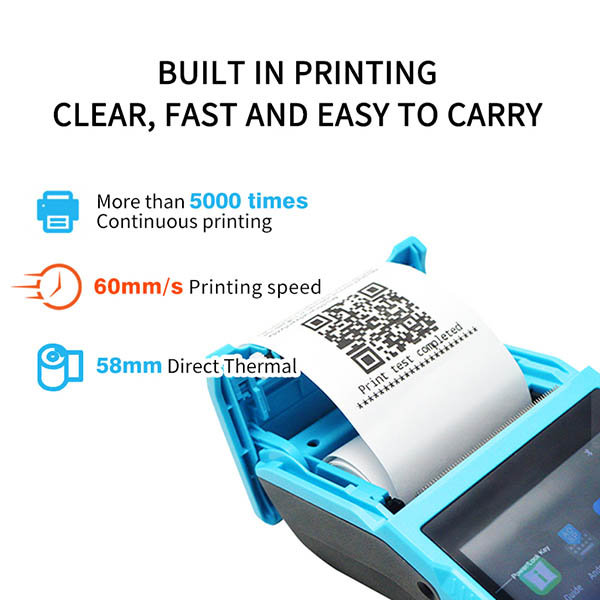

Printer
58mm
High Speed Thermal Receipt Printer
Battery
7.4V
/ 5200mAh
OS
Android
6.0
Operation Condition
0°C
~ 50°C; 20%RH ~ 80%RH; non-condensing maximum wet bulb 28.9°C

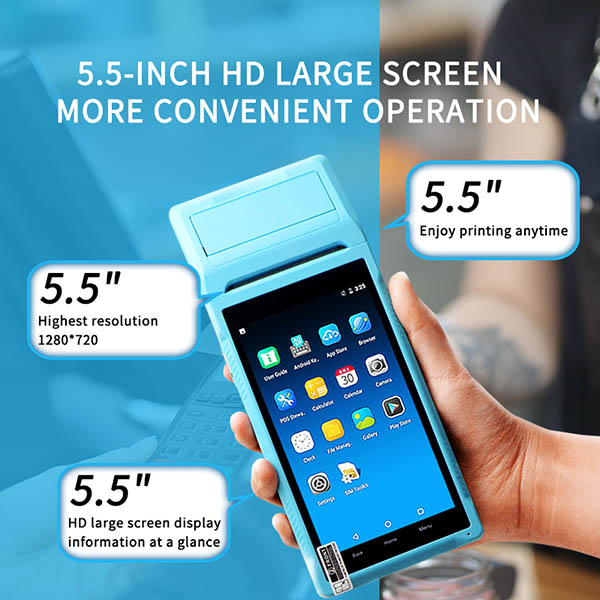

Display
Monitor
5.5"
HD Screen, Resolution 1920 x 720
Touch Screen
G+G
Capacitive Multi-Touch
Other Interfaces
MIC
Input, 1 x MicroUSB, SIM Socket, Earphone Input
EMC and Safety
CE/UL/FCC/ROHS/CCC
Dimension
209.2
(L) x 87.4 (W) x 51.7 (H) mm
1D
Scanner
S7101
1D Barcode
Scanner (integrated at the backside of the Q1)
NFC MODULE
Support
NFC Function
M1
Wireless
M1 Card Reader
